  1. 10. Mission Planning

10.5 Survey Planning

Previous10.4 Flight PlanNext10.5.1. Camera Details:-

Last updated 1 year ago

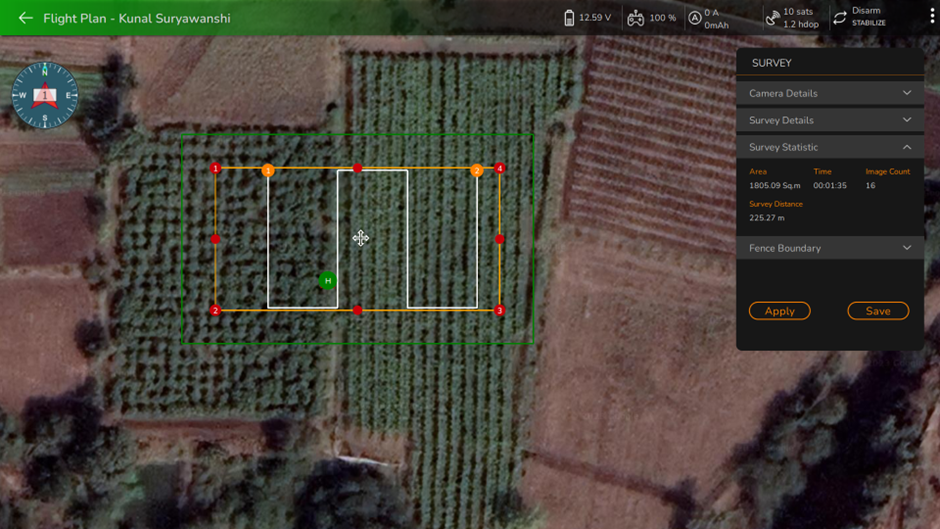

In AeroGCS ORANGE, if the user opts for "Survey" as the Flight Type while planning your mission, you'll see the screen shown below on your device.

In survey planning, it is essential to configure Camera Details, Survey Details, and Fence boundaries before applying and saving. Each section's details will be explained step by step, accompanied by actual software screen displays to guide you through the process.

You can access all these configuration details for setting up your survey on the right-hand side of the user interface under the title "SURVEY".

Survey Plan
