4. Dashboard on Home Screen

"AeroGCS ORANGE Dashboard: Navigate Precision, Command Control, Soar in Confidence!"

Step into the AeroGCS ORANGE Dashboard – Your Command Center for Precision. Connect your drone seamlessly to unlock a world of controls and real-time insights. Unleash the power of intuitive user interaction and dynamic information display, setting the stage for an unparalleled mission planning experience.

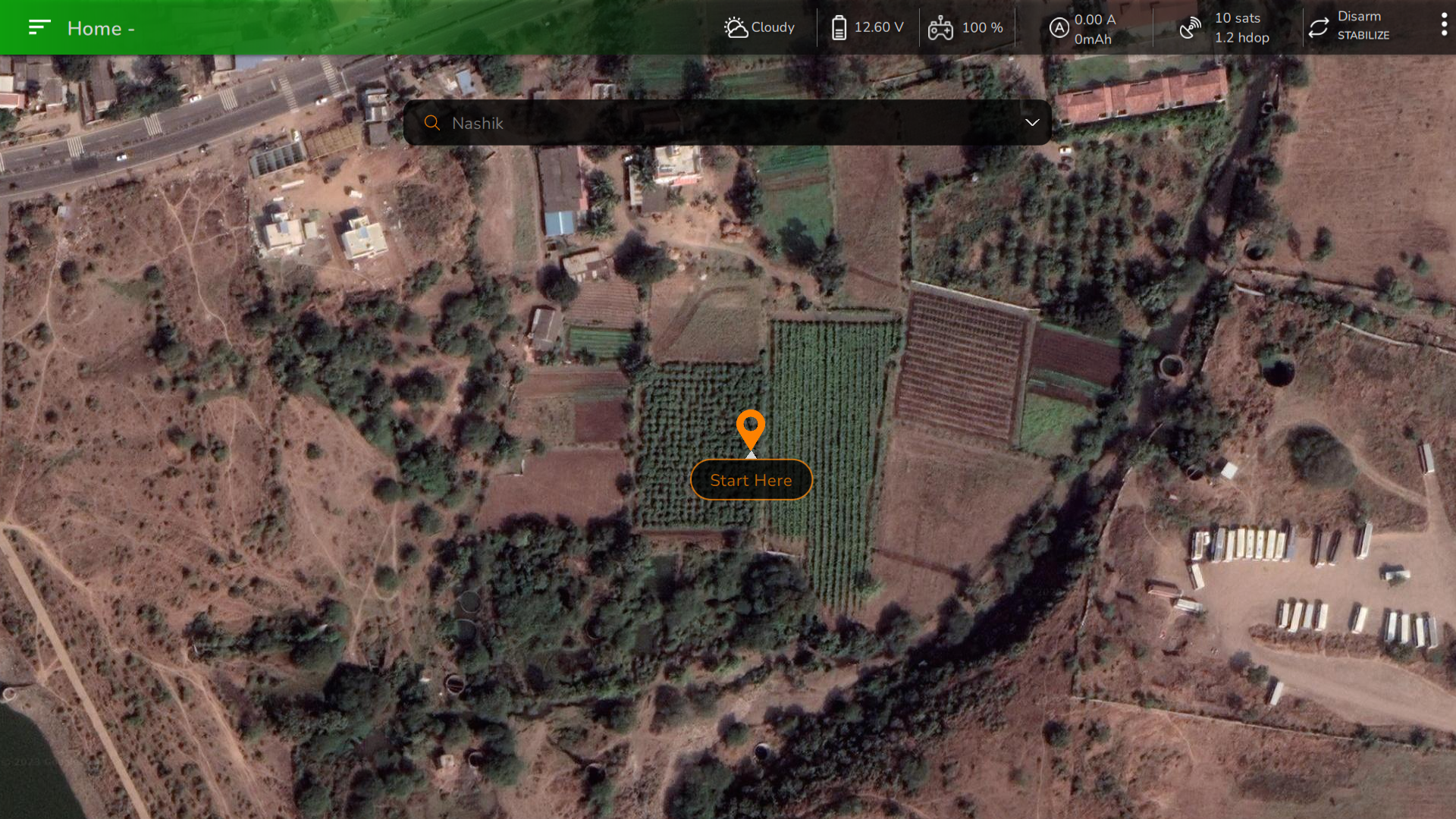

After logging in and connecting your drone, simplify operations with easy shortcuts. Explore a variety of options displayed on the dashboard, as shown in the accompanying image.

Dashboard

This dynamic screen not only showcases vital details on the top bar but also presents simple configuration options. Click on the three vertical dots at the top right corner to explore easy configurations. Click on the three lines at the top left corner for a seamless experience—create new projects or delve into existing ones with their essential details. Your gateway to efficient project management unfolds, as outlined in the following.

1. Project Menu :- Click here to see your current projects and create new ones with a simple "+" option. Easily search for a specific project using the text field. Simplify your project management experience.
2. Weather :-Click here to see Weather details for connected drone locations.
3. Starting Point :- This marks the starting point for initiating project creation and utilizing AeroGCS ORANGE.
4. Battery Voltage :- This widget displays the essential battery voltage, crucial for monitoring drone battery levels during flights.
5. Signal Strength :- This widget indicates the signal strength between the RC and the drone, represented as a percentage.
6. Battery Consumption :- This widget displays information on the current in amperes and the battery consumption during flight.
7. GPS satellites :- This widget offers details on the count of connected GPS satellites and their corresponding HDOP (Horizontal Dilution of Precision) value.
8. Operational Mode and Status :- This widget furnishes information about the operational mode and status of the drone.
9. Three Dots :- By tapping the three dots, you gain access to the following listed options.

i. Cloud Sync:- This option enables you to synchronize your projects with the Aeromegh Cloud, provided you have an Aeromegh Cloud subscription.

ii. Notifications:- This option grants you access to view all logs, flight logs, and warnings, accompanied by a "Download" option for easy retrieval.

iii. General Settings:- In the general settings, you can access Aeromegh login, unit configurations, and view your user profile.

iv. Teams:- The Teams feature enables you to manage user access to plans according to the manager's specifications.

v. Settings:- This option enables us to perform RPA Configurations, encompassing Sensors, Safety, RC Calibration, Flight Modes, Camera, and Joystick Settings.

vi. Weather:- This option provides you with weather information for the set location for the next 7 hours.

vii. Connect / Disconnect:- These options switch based on the drone's connection status. If the drone is not connected, you'll see the "Connect" option for establishing a connection with the GCS. On the other hand, if the drone is already connected, the "Disconnect" option appears, allowing you to disconnect the drone from the GCS.

viii. Data Verification:- This option enables data verification based on various parameters.

ix. About:- The "About" section displays information regarding the build number, copyright details, website, email, license key, terms of use, code checksum, and data checksum.

x. Exit:- This option will close the application and exit.
