7.4 Using Existing Flight Plan

Unlock the efficiency of AeroGCS ORANGE by harnessing the power of existing plans. Streamline your operations and maximize productivity with the convenience of reusing plans for a seamless experience.

AeroGCS ORANGE enables users to use existing plans. Here are the steps:

Step 1. Access the project menu by clicking on the project icon .

Step 2. Choose the desired project from the list.

Step 3. Select the plan you want to use from the available plans.

Step 4. Click on the plan name to display the plan view.

Step 5. Click on the "Edit" button to modify parameters if needed.

As shown in the following screen

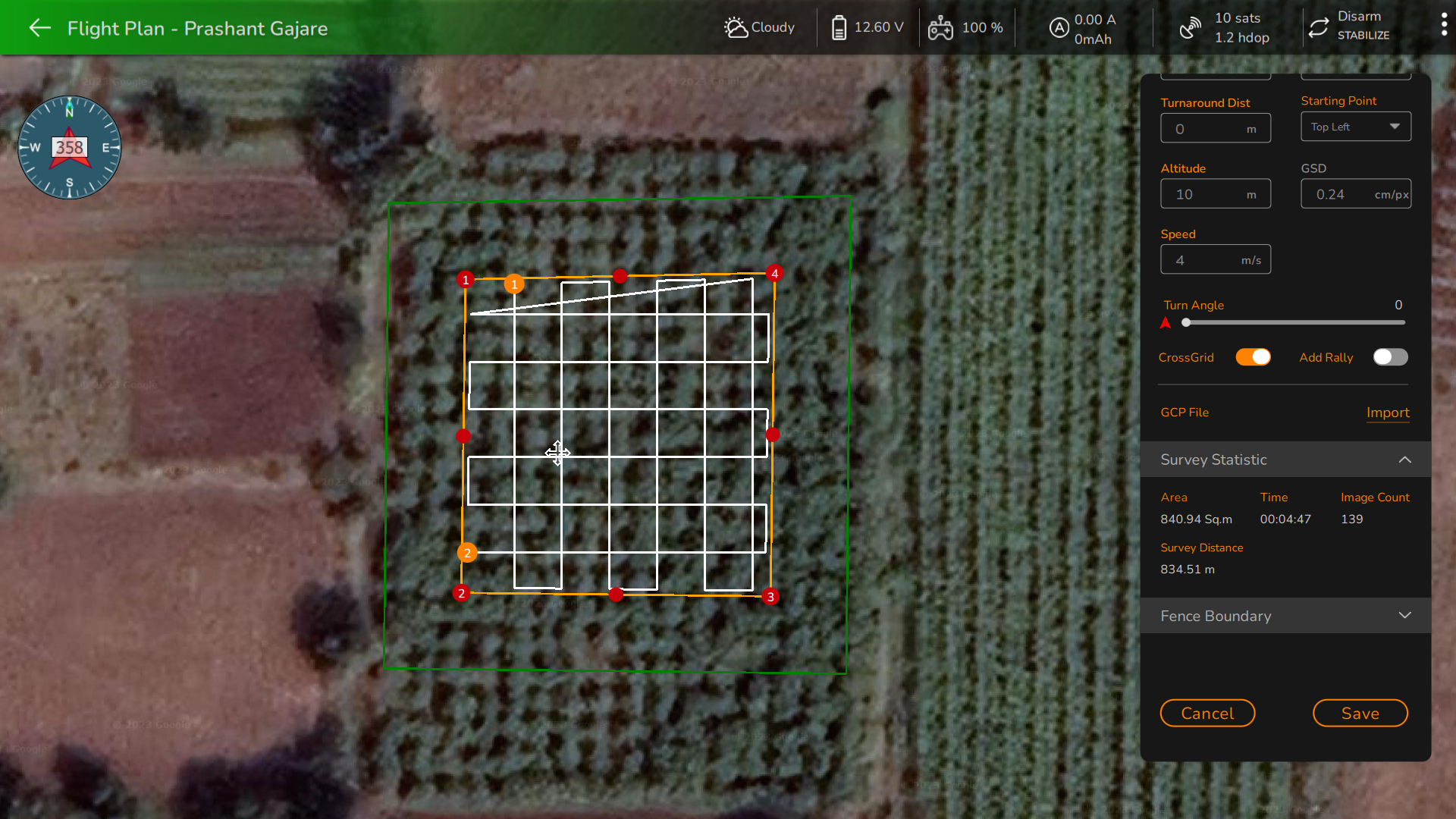

Edit plan

Step 6. After editing the plan, click on the "Save" button to save the changes. Follow on-screen instructions to upload the plan to the vehicle/drone.

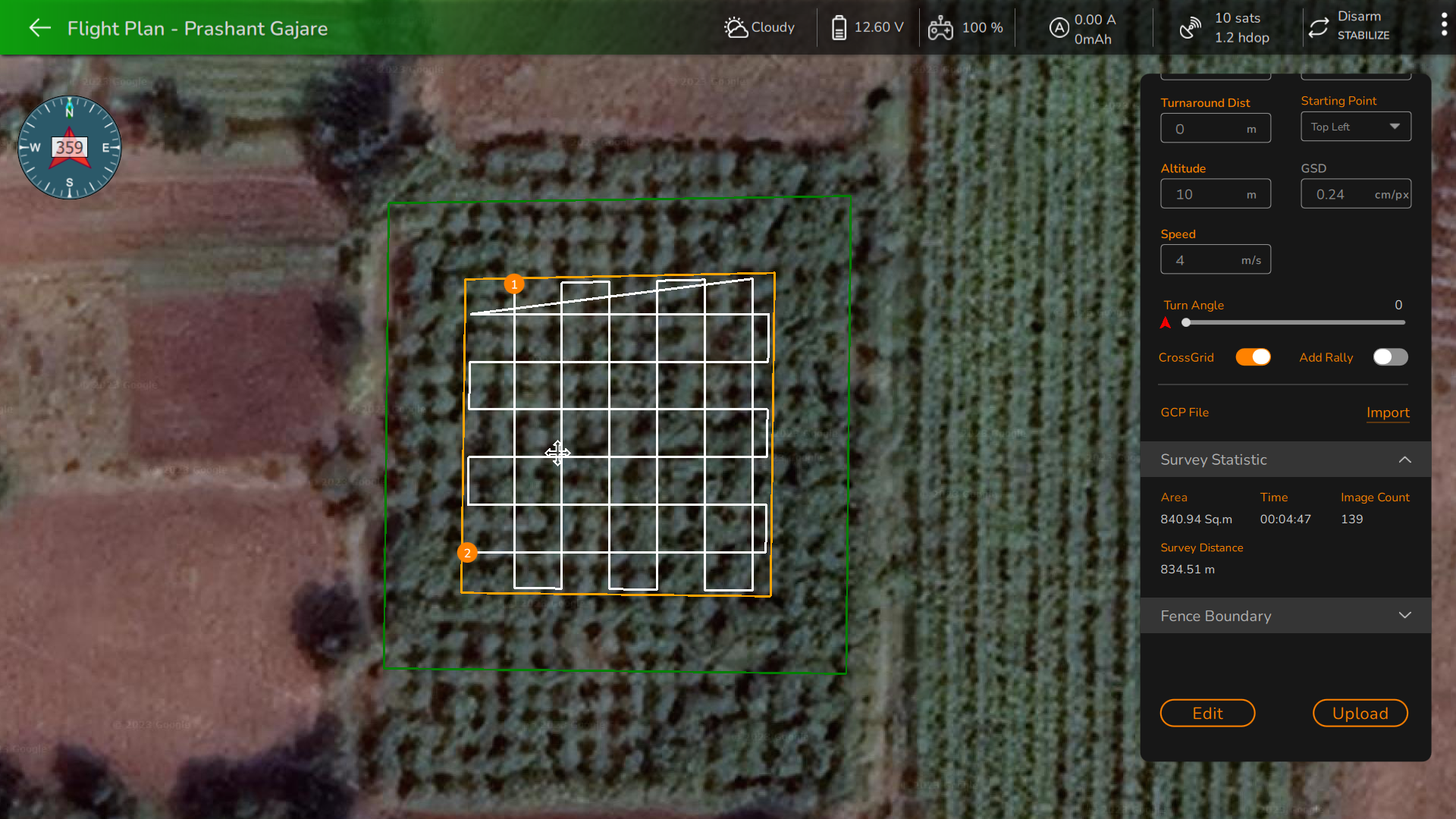

Save Plan

Step 7. In Step 5 if the user doesn't want to edit the parameters and wishes to upload the plan as it is, click on the "Upload" button to transfer the plan to the vehicle/drone.

Note: Ensure the drone/device is disconnected to plan at a different location.
