  1. 13. Data Verification Tool

13.1 Geo Tagging

Previous13. Data Verification ToolNext13.2 GCP (Ground Control Point)

Last updated 1 year ago

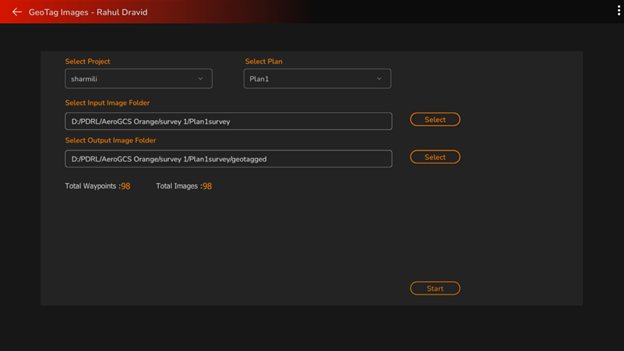

The user can geotag the images using the "Geo Tagging" option from the Data Verification screen. The screen displayed on the user's interface will appear as shown in the following figure.

On this screen, the user will see the selected image folder for geotagging. AeroGCS ORANGE will create a new folder with the name "geotagged" to store the output, i.e., the geotagged images. On this screen, the user has the option to select the input image folder using the "Select" button and set the output image folder to store geotagged images.

The user needs to select the project from the drop-down menu and choose the plan from the selected project, whose image set the user has selected for geotagging.

This will display the total number of waypoints and the total number of images from the project. It's crucial to ensure that the total number of waypoints and images matches before initiating the geotagging process by clicking the "Start" button.

If the total number of waypoints and the total number of images are not equal, the geotagging process will not start. A message will be displayed, indicating that waypoints and image numbers are not equal, preventing the geotagging process from proceeding.

After clicking the "Start" button, the geotagging process will commence, and the progress will be displayed on the screen, as shown in the following image.

During the geotagging process, geotag logs are generated and stored in a log file. The name and path of the log file are displayed below the progress bar as images are geotagged.

After completing the geotagging process, the user will see the Geotagging Complete screen, as illustrated in the following image.

Once the "Completed" button is clicked, the geotagging process for the images is completed.

Geotagging

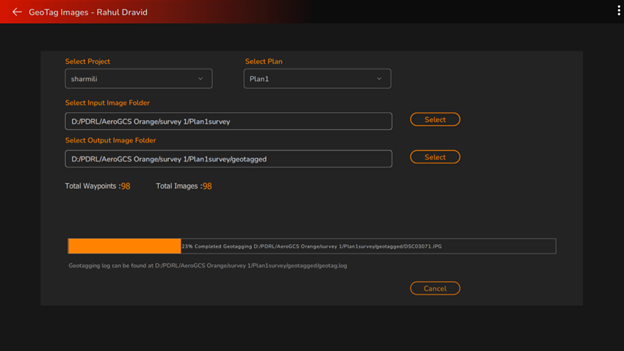

Geotagging Process

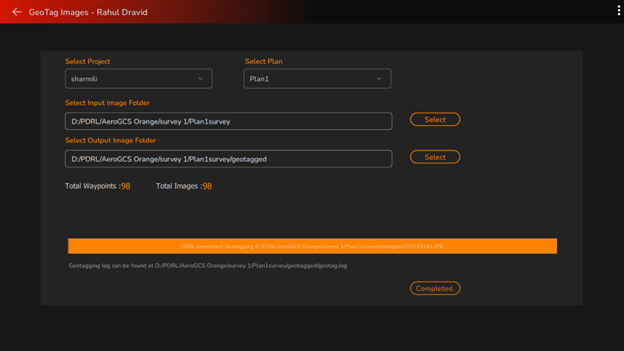

Geotagging Complete
